Three position pneumatic actuator

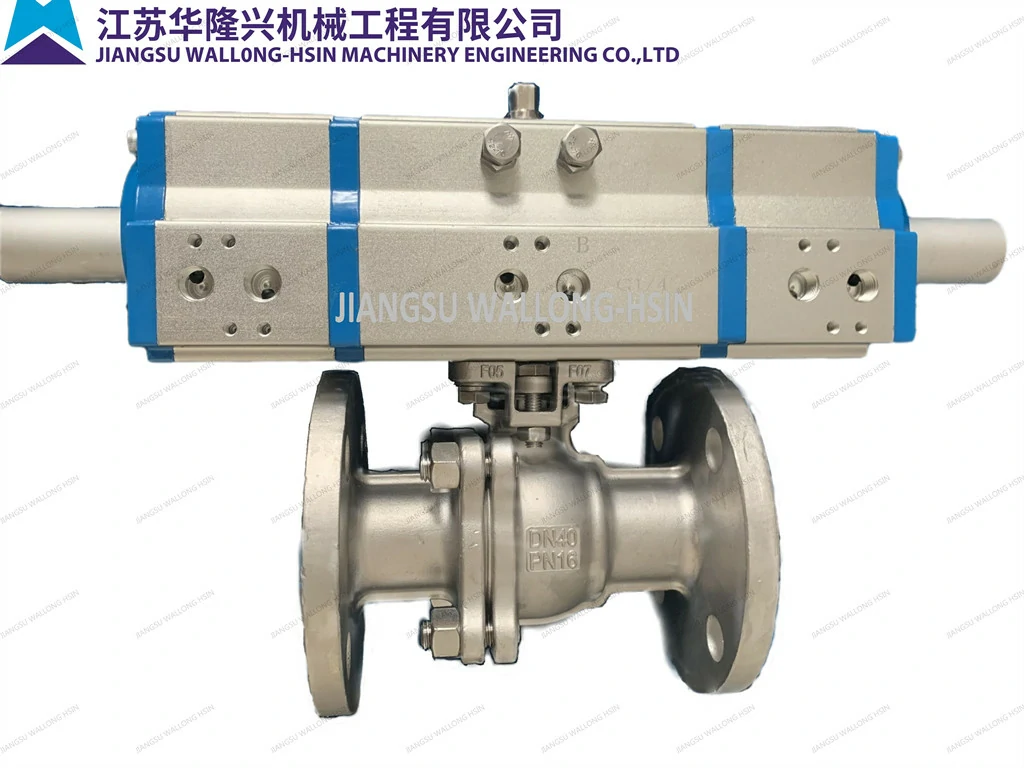

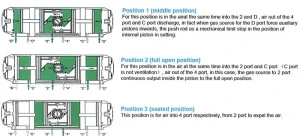

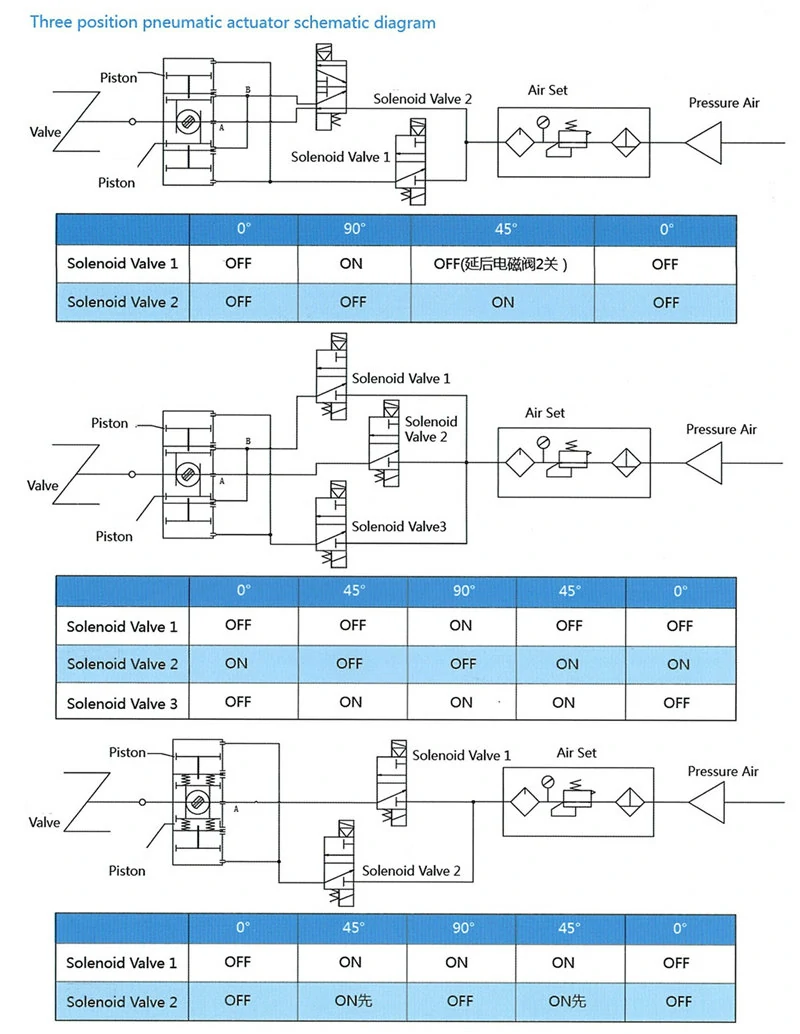

Three position pneumatic actuator provides an operation of 0°,45°,90°,or 0°,90°,180°. The midway position is achieved by a mechanical stoppage of movement on the two auxiliary pistons. This auxiliary piston(Midway stop position is adjustable). example 90°actuator can provide 20°,30°,40°,50°,70°etc.

Position limit adjust

Full open and close position control, close position and open position through the two adjustment bolts, can accurately control actuators from -5°to +5°to (0°,90°) adjusted stroke position, as long as the left-handed or right-handed adjustment bolts, and at the right position lock nut.

Full stroke position adjustment

Series pneumatic actuators in a specially designed 0°to 90°, 0°to 120°, within the scope of 0°and 180°can adjust any Angle, set by end cover and the special bolt.
